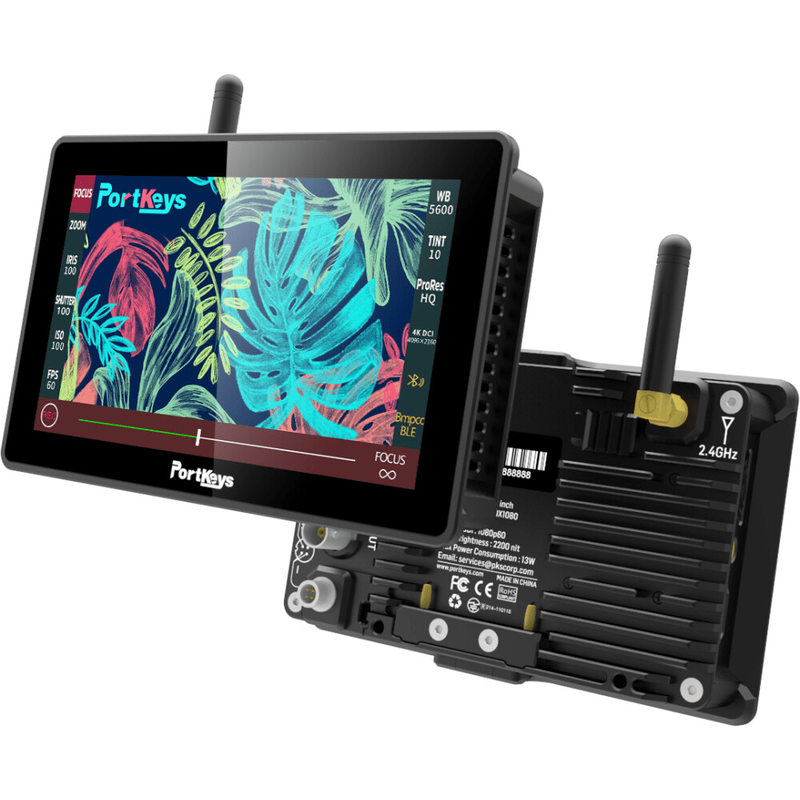

Portkeys BM5 III SDI + HDMI Monitor

The Portkeys BM5 III is a lightweight, rugged 5.5-inch Wide Color Gamut on-camera monitor with 2,200nits of brightness, HDMI/SDI video inputs, one SDI output with HDMI cross-conversion, and wired camera control capabilities.

Key features:

• 5.5-inch, 10-bit (8+2 FRC) panel with a resolution of 1920 x 1080 and a 1000:1 contrast ratio.

• Daylight-viewable with a maximum brightness of 2,200nits.

• 1 x 3G-SDI input, 1 x HDMI input, 1 x 3G-SDI output with cross-conversion.

• Professional monitoring tools: Waveform, Vectorscope, Peaking, ARRI False Color.

• 3D LUT monitoring and 3D LUT SDI output capabilities.

• Wired camera control for Sony, Canon, Panasonic, BMD, and Z CAM E2.

• TILTA Nucleus N/M wireless follow focus wired control.

• Built-in Sony NP-F style battery plate.

• 4-pin 7.4V-24V power input for external power (D-Tap cable included).

• Lightweight and rugged aluminum housing: only 351g/12.3oz.
